Integrating Checkly in GitLab CI/CD

Prerequisites

Before adding the pipeline, set the required credentials as GitLab CI/CD variables. In your GitLab project, go to Settings > CI/CD > Variables and add:

CHECKLY_API_KEY: a Checkly API key, created on the API keys tab in your Checkly user settings. Mark this variable as Masked so it does not appear in job logs.
CHECKLY_ACCOUNT_ID: your Checkly account ID, found on the Account settings tab.

The variables block in the pipeline example below references these CI/CD variables and exports them to the checkly test and checkly deploy commands.

A Basic GitLab Pipeline Example

Create a new .gitlab-ci.yml file in your repo, or add the steps and stages from the example below to your existing file. This pipeline is “branch aware” and treats the main branch as the production branch. This means checks are only deployed to Checkly after they are ran against production (after merging to main) and the checks passed.

.gitlab-ci.yml

image: node:latest

# define your stages to deploy your app, run tests and then deploy the tests as monitors.
stages:
  - deploy
  - checkly-test
  - checkly-deploy

# Set the necessary credentials and export variables we can use to instrument our test run. Use the ENVIRONMENT_URL
# to run your checks against staging, preview or production.
variables:
  CHECKLY_API_KEY: "$CHECKLY_API_KEY"
  CHECKLY_ACCOUNT_ID: "$CHECKLY_ACCOUNT_ID"
  CHECKLY_TEST_REPO_BRANCH: "$CI_COMMIT_BRANCH"
  CHECKLY_TEST_REPO_URL:  "$CI_PROJECT_URL"

deploy-app:
  stage: deploy
  script:
    - echo "add your deployment logic here"
    # - ENVIRONMENT_URL= <add some command to extract a branch specific url to target

# Set a different environment name based on the branch you are testing against.
e2e-staging:
  stage: checkly-test
  cache:
    key:
      files:
        - package-lock.json
    paths:
      - node_modules
  variables:
    CHECKLY_TEST_ENVIRONMENT: review/$CI_COMMIT_REF_SLUG
  script:
    - npm ci
    - npx checkly test
  except:
    - main

e2e-production:
  stage: checkly-test
  cache:
    key:
      files:
        - package-lock.json
    paths:
      - node_modules
  variables:
    CHECKLY_TEST_ENVIRONMENT: "production"
  script:
    - npm ci
    - npx checkly test
  only:
    - main

monitor:
  stage: checkly-deploy
  cache:
    key:
      files:
        - package-lock.json
    paths:
      - node_modules
  needs: ["e2e-production"]
  script:
    - npx checkly deploy --force
  only:
    - main

The above example creates three stages:

deploy: this is where your application specific deployment logic happens
checkly-test: after the deploy stage, we run the checkly test command. We run two different jobs based on whether we are on the main branch of a different, feature branch so we can set a different environment.
checkly-deploy: the last stage, that only runs on main is to deploy the checks to Checkly. Note that this stage only runs when the previous e2e-production job is successful.

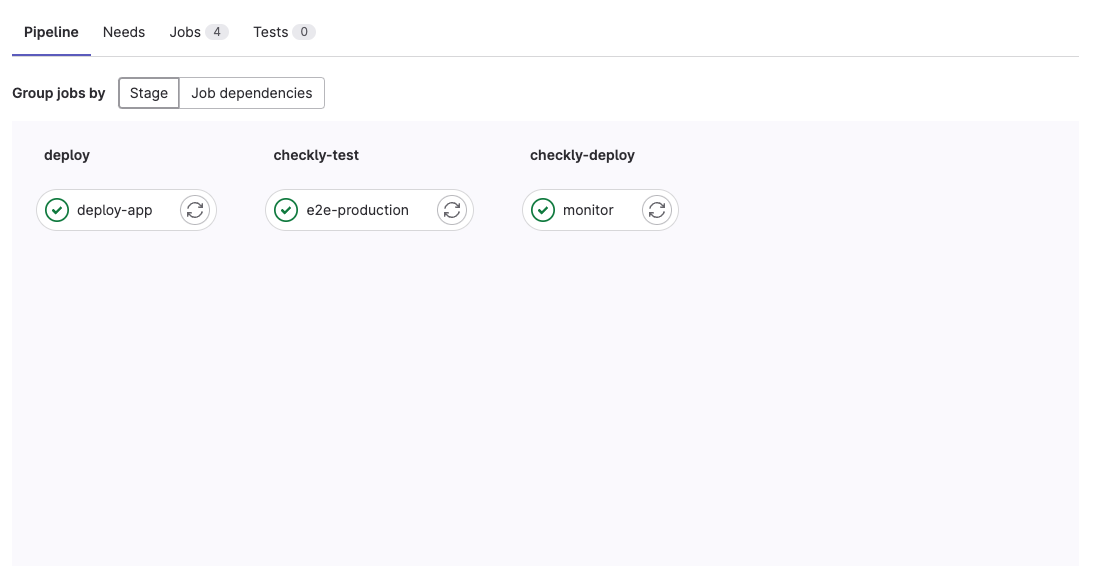

The output in the GitLab CI CI/CD -> Pipelines tab will now look similar to this:
